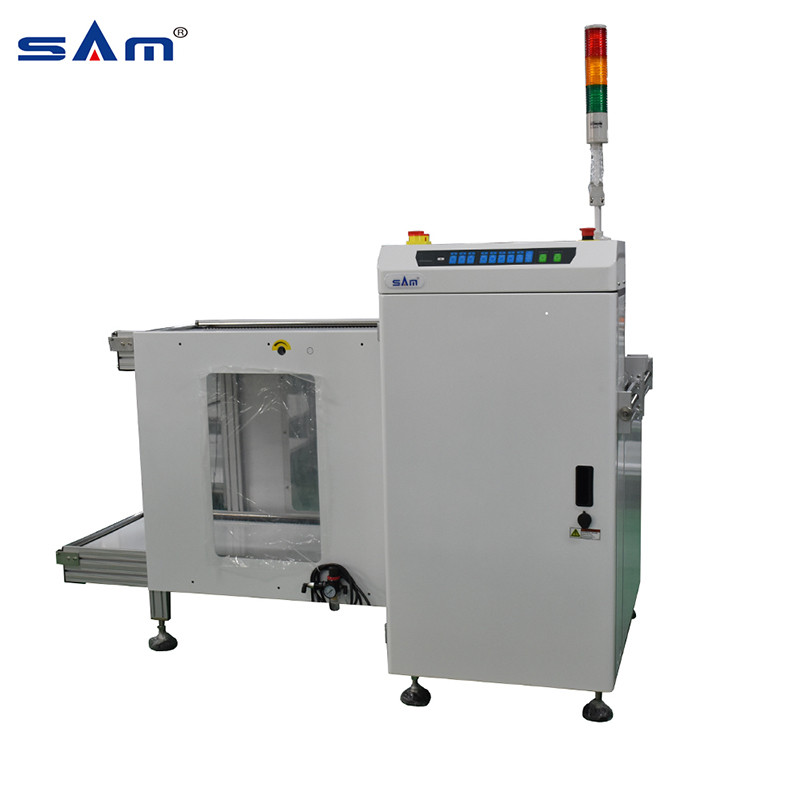

Automatic SMT Assembly Line PCB Magazine Loader

Automatic SMT Assembly Line PCB Magazine Loader

Automatic SMT Assembly Line PCB Magazine Loader
Automatic SMT Assembly Line PCB Magazine LoaderAutomatic SMT Assembly Line PCB Magazine Loader
CategoriesLoaders & Unloader
AlbumView larger image
BrandSamtronik
BrandSAM
ApplicationSMT Line
Magazine No.3 pcs
UsagePCBA Transfer
Products namePCB Magazine loader
FOB portShenzhen
Terms of PaymentL/C, T/T
Update Time2018-11-15
Detail Information
 Automatic SMT Assembly Line PCB Magazine Loader
Features
1.Sturdy and stable Design.

2.In house design control board.

3.User friendly ‘soft touch’ LED membrane control panel.

4.Pressure regulated on pusher’s to prevent board damage.

5.Three points pneumatic clamping to align and secure magazine in position.

6.Self diagnostic Error Code display.

7.The pusher position can be adjust according to PCB thickness.

8.Used wear resistant cable to prevent intermittent problem.

9.SMEMA compatible
Details of PCB Magazine loader



Magazine Loader application example

Used for loading PCB from magazines
Technical  parameter

Description

Used for loading & unloading PCBs

from the Magazine







No. of Magazine

Upper Conveyor:1;Lower Conveyor: 2





Time Feed PCB

Approx. 6 seconds or Specify





Magazine Change Time

Approx. 30 seconds or Specify





Indexing Pitch

10, 20, 30, 40mm or specify





Power Source

220VAC 50/60HZ





Air Pressure & Consume

4-6 bar, 10ltr/min max.





PCB Thickness

0.6mm min.



Customization Option

Width adjustable magazine conveyor(s)

Additional magazine capacity

Shorter magazine change-over time (20 sec)

 Touchscreen display

 Alarm buzzer

Other options available on request

Specification

Machine

Model

Size

Dimension

Effective PCB Size

Weight

Rack size

(L x W x H) (mm)

(L x W) (mm)

( KG )



SMB-1A101M

M

1330x765x1250

50x50-330x250

140

355x320x563

















SMB-1A102L

L

1650x845x1250

50x50-445x330

180

460x400x563

Loader













SMB-1A203LL

LL

1800x909x1250

50x50-530x390

220

535x460x570



















SMB-1A202XL

XL

1800x970x1250

50x50-530x460

240

535x530x570

















SMB-1D101M

M

850*765*1250

50x50-330x250

130

355x320x563















Compact up

SMB-1D101L

L

1100*845*1250

50x50-445x330

160

460x400x563













trigger

SMB-1D101LL

LL

1450*909*1250

50x50-530x390

190

535x460x570



















SMB-1D101XL

XL

1450*970*1250

50x50-530x460

210

535x530x570
