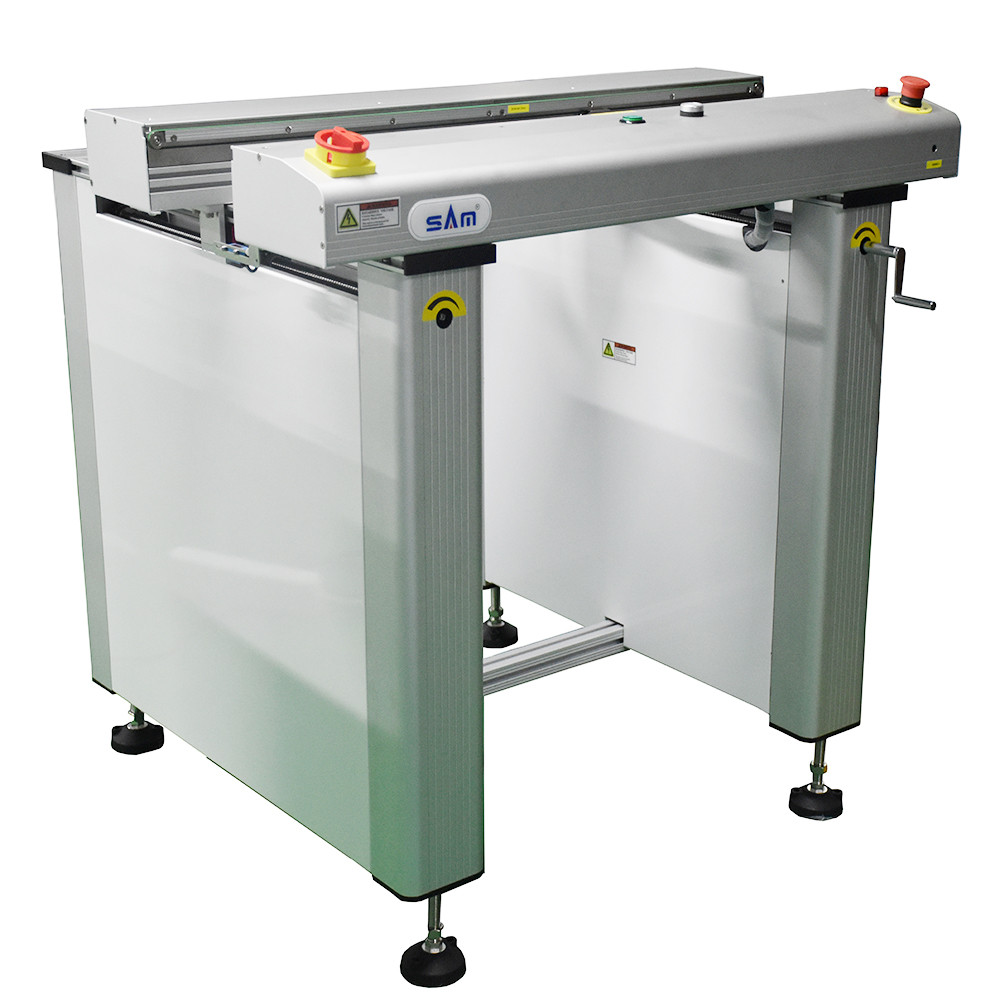

PCB Handling Equipment 1 Meter length SMT Conveyors

PCB Handling Equipment 1 Meter length SMT Conveyors

PCB Handling Equipment  1 Meter length  SMT Conveyors
PCB Handling Equipment  1 Meter length  SMT ConveyorsPCB Handling Equipment  1 Meter length  SMT Conveyors
CategoriesConveyors
AlbumView larger image
BrandSamtronik
BrandSAM
Products NamePCB Inspection Conveyor
Conveyor typeFlat belt
Conveyor speed0.5-20M/min or Specify
Power Supply110V-220V 50/60HZ
FOB portShenzhen
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-12-14
Detail Information
PCB Handling Equipment 1 Mt PCB Conveyors smt conveyors for SMD Line & Coating line
Features

1. Anti stuck track design .

2.PLC Program control .

3. Easy replacement belts .

4. Aluminium  material , heavy bottom design to prevent shifting .

5.PCB Precise stopping in position .

6.With Inspection and Auto mode.

7.Smooth and parallel width adjustment .

8.SMEMA compatible

Option: conveyor can be customize according to requirement ,such as length ,no of PCB stoppage ,add ESD dust cover etc ....


Details of PCB Inspection Conveyor
Technical  parameter

DescriptionUsedfor visual inspection station
Conveyor TypeFlat Belt
Conveyor Speed0.5-20m/min or specify
Power Source110V-220VAC 50/60HZ
Specification

Model

Size

Dimension

(L x W x H) (mm)

Effective PCB Size

(L x W) (mm)

Approximate

Weight (Kg)

SMA-2A100L

L

1000 x 742 x 930

50x50-445x330

95

SMA-2A100XL

XL

1000x 840 x 930

50x50-530x460

110

SMA-2B050L

L

500 x 700 x 915

50x50-445x330

85

SMA-2B050XL

XL

500 x 840 x 915

50x50-445x460

90

SMA-2B060L

L

600 x 742 x 915

50x50-445x330

90

SMA-2B060XL

XL

600 x 840 x 915

50x50-445x460

95

SMA-2B070L

L

700 x 707 x 915

50x50-445x330

90
