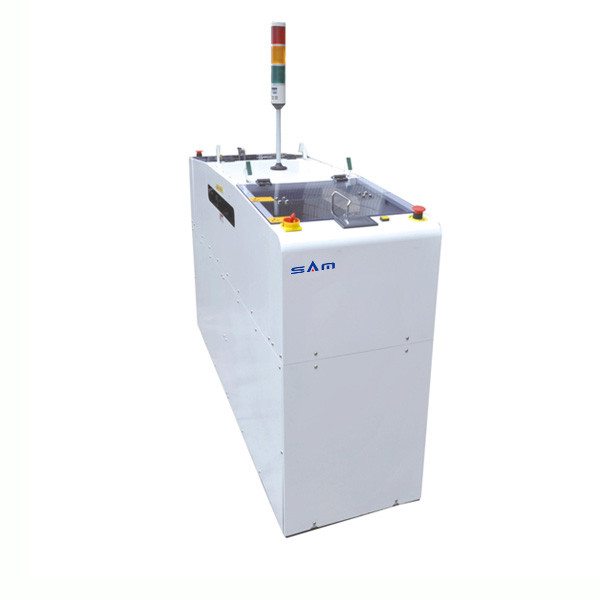

PCB Traverser for SMT Production line

PCB Traverser for SMT Production line

PCB Traverser for SMT Production line
CategoriesTraffic Controller
AlbumView larger image
BrandSamtronik
BrandSAM
Products NamePCB traverser
Cycle timeApp 6 second
Power supply110V-220V 50/60HZ
PCB Thickness0.6mm Min
FOB portShenzhen
Terms of PaymentL/C, T/T
Update Time2018-12-14
Detail Information
PCB Traverser for SMT Production line
Features

  • 1.Enclosed design ensures highest level of safety.

  • 2.Top safety cover can be open for easy access to maintanence.

  • 3.Controlled by PLC

  • 4.User freindly soft touch LED menbrane control panel.

  • 5.Fast,parallel and precise sliding motion .

  • 6.PCB direction flows can be customized.

  • 7.SMEMA compatible.


Technical  parameter

Description Used to redirect PCBs flow into different channels

Cycle Time  Approx. 15 seconds or Specify

Power Source 220VAC 50/60HZ

Air Pressure & Consume    4-6 bar,Max 15ltr/min

PCB Thickness Min 0.6mm


Specification

Model

Size

Dimension (L*W*H)(mm)

PCB size (L*W)(mm)

Weight (kg)

SMF-1B300M

M

500*750*1050

50*50--330*280

250

SMF-1B300L

L

600*880*1050

50*50--457*390

280
