Home > Products > PCB Surface Cleaning >

PCB Surface Cleaning Machine

PCB Surface Cleaning Machine

PCB Surface Cleaning Machine
PCB Surface Cleaning MachinePCB Surface Cleaning Machine
CategoriesPCB Surface Cleaning
AlbumView larger image
BrandSamtronik
BrandSAM
Products NamePCB traverser
Cycle timeApp 6 second
Power supply110V-220V 50/60HZ
PCB Thickness0.6mm Min
FOB portShenzhen
Terms of PaymentL/C, T/T
Update Time2019-08-20
Detail Information

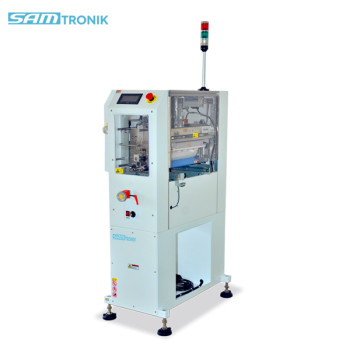

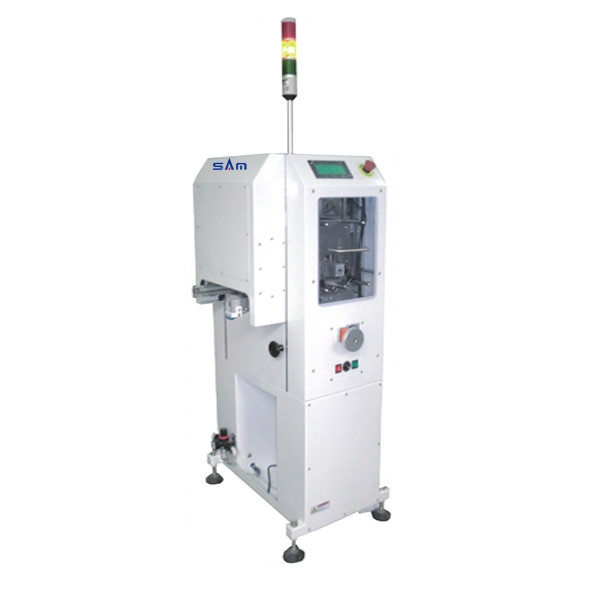

PCB Surface Cleaning machine for remove surface dust
Features


1.Used for cleaning PCB surface dust and eliminate electricity static


2.In-line automatic cleaning machine, save time and labor.


3.Equipped two set static remove device ,completely eliminate electrostatic risk on the PCB surface.


4.Two language display Chinese and English,easy operation.


5.Draw-out design for better maintenance.


6.Professional design and production clean machine with

many years experience , we know what customer requirement .


PCB Surface Clean Machine on SMT Production Line
Technical Parameter

Description

Used for cleaning PCB surface dust and eliminate electricity static



Cycle Time

Approx. 8 seconds

Power Source

230VAC 1ph 150VA max.(Option:100VAC)

PCB Thickness

0.6mm min.

Conveyor Type

Flat Belt

Conveyor Speed

0.5-20m/min or specify

Conveyor Deliver high

880-930MM

Specification

Model

Size



Dimension(L x W x H) (mm)



Effective PCB Size(L x W) (mm)



Approximate Weight (Kg)

SMK-1A055M

M

550x650x1350

50x50-250X330

170

SMK-1A055L

L

550x680x1200

50x50-330x450

185

SMK-1A055LL

LL

550X780x1200

50x50-390X530

220

SMK-1A055XL

XL

550x850x1200

50x50-460X530

260
