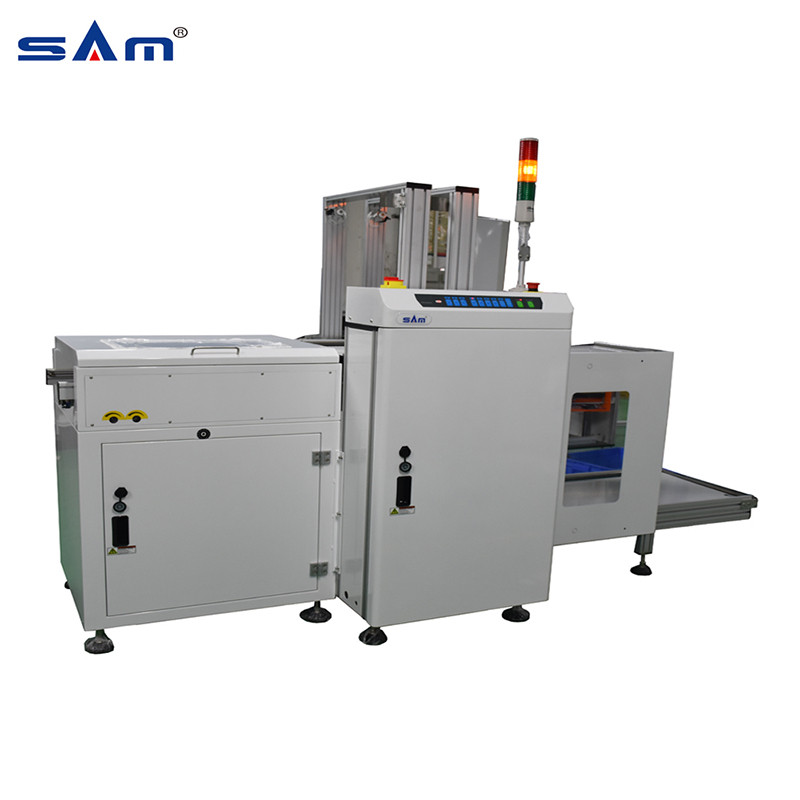

Multi Magazine PCB Un-loader

Multi Magazine PCB Un-loader

Multi Magazine PCB Un-loader
CategoriesLoaders & Unloader
AlbumView larger image
BrandSamtronik
NamePCB Unloader
Transport height900±30mm
transport directionLeft to Right or Right to Left
Fixed railFront
Conveyor beltESD belt (Round flat belt )
PCB unloading time±6 second
Magazine No.3 Magazines
Update Time2018-11-15
Detail Information
Multi Magazine Unloader for SMT Production line
Features
1.Sturdy and stable Design.

2.In house design control board.

3.User friendly ‘soft touch’ LED membrane control panel.

4.Pressure regulated on pusher  stop prevent board damage.

5.Three points pneumatic clamping to align and secure magazine in position.

6.Self diagnostic Error Code display.

7.The pusher position can be adjust according to PCB thickness.

8. Used wear resistant cable to prevent intermittent problem.

9. SMEMA compatible
Details of Multi Magazine unloaders



PCB Unloader Application example

Used for Unloading PCBs to Magazines

No of Magazines : 3 PCS
Technical Parameter

Description

Used for loading & unloading PCBs
from the Magazine

No. of Magazine

Upper Conveyor:1;Lower Conveyor: 2

Time Feed PCB

Approx. 6 seconds or Specify

Magazine Change Time

Approx. 30 seconds or Specify

Indexing Pitch

10, 20, 30, 40mm or specify

Power Source

220VAC 50/60HZ

Air Pressure & Consume

4-6 bar, 10ltr/min max.

PCB Thickness

0.6mm min.

Customized Option

Width adjustable magazine conveyor(s)

Additional magazine capacity

Shorter magazine change-over time (20 sec)

 Touchscreen display

 Alarm buzzer

Other options available on request
Specification

Machine

Model

Size

Dimension

(L x W x H) (mm)

Effective PCB Size

(L x W) (mm)

Weight

( KG )

Rack size

Un-Loader

SMB-2A101M

M

1930x760x1250

50x50-330x250

160

355x320x563

SMB-2A102L

L

2220x845x1250

50x50-445x330

190

460x400x563

SMB-2A203LL

LL

2660x909x1250

50x50-530x390

230

535x460x570

SMB-2A202XL

XL

2660x979x1250

50x50-530x460

260

535x530x570

L type trigger

SMB-1L101M

M

1100*1250*1250

50x50-330x250

160

355x320x563

SMB-1L101L

L

1200*1350*1250

50x50-445x330

170

460x400x563

SMB-1L101LL

LL

1350*1500*1250

50x50-530x390

190

535x460x570

SMB-1L101XL

XL

1350*1600*1250

50x50-530x460

220

535x530x570
