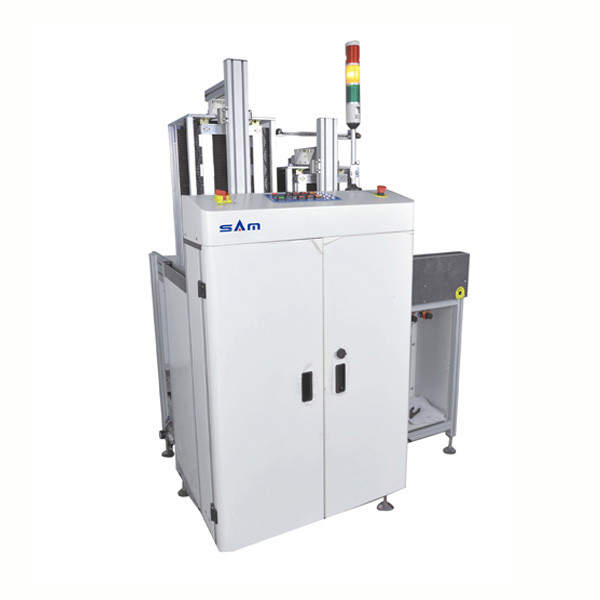

Multimagazine NG/OK Un-loader

Multimagazine NG/OK Un-loader

Multimagazine NG/OK Un-loader
CategoriesLoaders & Unloader
AlbumView larger image
BrandSamtronik
NamePCB Unloader
Transport height900±30mm
transport directionLeft to Right or Right to Left
Fixed railFront
Conveyor beltESD belt (Round flat belt )
PCB unloading time±6 second
Magazine No.3 Magazines
Update Time2018-12-14
Detail Information
Multi Magazine NG/OK  Unloader Machine
Features

Automatically Un-loader NG and OK PCB board to different magazine box after AOI inspection



PLC programming control system .



Simple operation Soft touch LED control panel .



Special pressure circuit design to prevent PCB board damage .



Three point pneumatic clamping to align for secure magazine position.



Push height can adjust according to PCB thickness ,



SMEMA Compatible .

Application
Technical Parameter

Description

Used for loading & unloading PCBs
from the Magazine

No. of Magazine

Upper Conveyor:1;Lower Conveyor: 2

Time Feed PCB

Approx. 6 seconds or Specify

Magazine Change Time

Approx. 30 seconds or Specify

Indexing Pitch

10, 20, 30, 40mm or specify

Power Source

220VAC 50/60HZ

Air Pressure & Consume

4-6 bar, 10ltr/min max.

PCB Thickness

0.6mm min.

Specification

Model

Size

Dimension

(L * W* H) (mm)

Effective PCB Size( L*W) (mm)

Approximate

Weight (Kg)

Rack size

(L*M*H)mm

SMD-1G100M

M

1450*1450*1250mm

50*50-330*250

240

355*320*560

SMD-1G100L

L

1650*1580*1250mm

50*50-445*330

285

460*400*560

SMD-1G100LL

LL

1980*1720*1250mm

50*50-530*390

320

535*460*570

SMD-1G100XL

XL

1980*2050*1250mm

50*50-530*460

345

535*530*570
