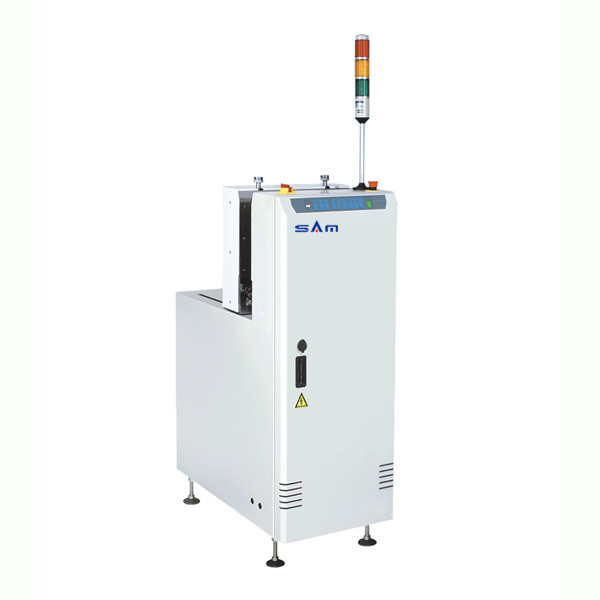

SAM PCB Destacker for loading bare boards

SAM PCB Destacker for loading bare boards

SAM PCB Destacker for loading bare boards
CategoriesLoaders & Unloader
AlbumView larger image
BrandSamtronik
ApplicationApply for loading Bare boards
Max PCB Capacity400pcs
PCB Feed timeApp 10 sec
Air Supply4-6 Bar
Weight200kg
PCB thicknessMin 0.6mm
Power supply110-220V 50/60HZ
Terms of PaymentL/C, D/A, D/P, T/T
Update Time2018-11-15
Detail Information
Features

1.PLC program control.


2.Aluminium structure, heavy bottom design to prevent shift.


3.Pass-through mode provided.


4.Only taken 10 seconds to change product line.


5.User friendly ‘soft touch‘ LED  control panel.


6.Uninterrupted Loading.


7.SMEMA compatible.

Technical Parameter

Description

Used for loading PCB from the Magazine

Time Feed PCB

Approx. 10 seconds or Specify

Max PCBs Capacity

400pcs (0.6mm thickness PCB)

Power Source

220VAC 50/60HZ

Air Pressure &

Consume

4-6 bar, Max 10ltr/min

PCB Thickness

0.6mm

Specification

Model

Size

Dimension

(L * W* H) (mm)

EffectivePCB Size( LxW) (mm)

Approximate

Weight (Kg)

SMB-4A060XL

XL

503*889*1200mm

50*50-530*460

250
