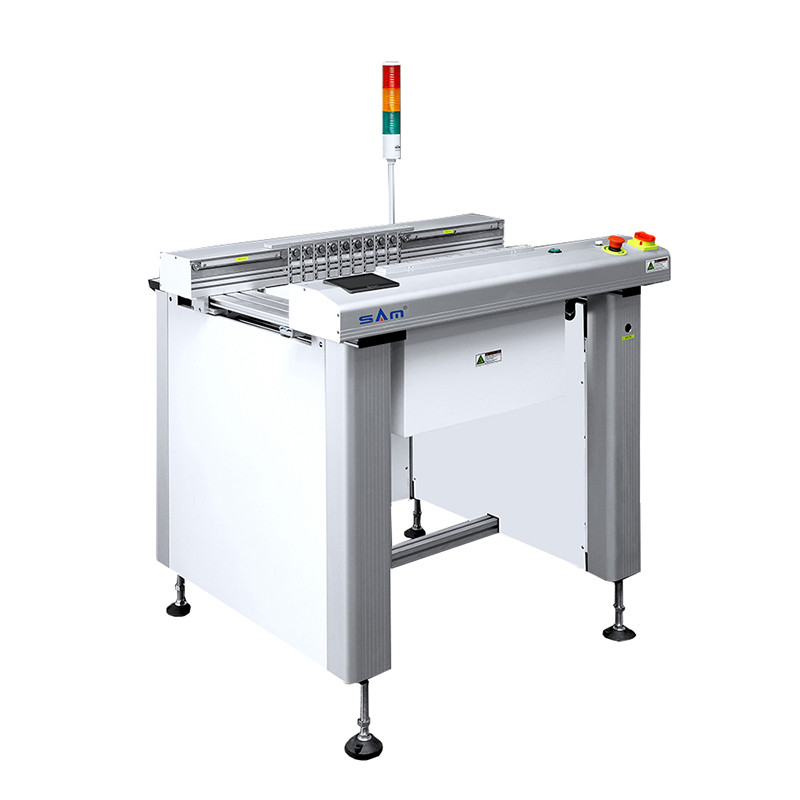

PCB Reject Conveyor NG/OK Conveyors

Detail Information

PCB Reject Conveyors NG OK SMT Conveyors

Features

1.Three function mode: Reject ,Inspection ,Pass through

2.Modular design

3. Robust design ,more stability

4. PCB Precise stopping in position.

5.PLC Program control

6. Easy for belt replacement

7. SMEMA Compatible

Details of PCB Reject Conveyors

Technical parameter

Description	used for separate NG and OK board
Conveyor Type	Flat Belt
Conveyor Speed	0.5-20m/min or specify
Power Source	110V-220VAC 50/60HZ

Specification

Model

Size

Dimension

(L x W x H) (mm)

Effective PCB Size

(L x W) (mm)

Approximate

Weight (Kg)

SMD-1B100L

L

1000 x 739 x 920

50x50-457x407

95

SMD-1B100XL

XL

1000 x 950 x 920

50x50-530x460

115
