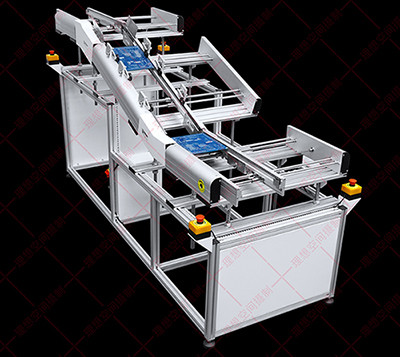

PCB Solder Outfeed Conveyor after wave soldering machine

PCB Solder Outfeed Conveyor after wave soldering machine

PCB Solder Outfeed Conveyor after wave soldering machine
CategoriesConveyors
AlbumView larger image
BrandSamtronik
BrandSAM
Products NamePCB Solder outfeed conveyors
Conveyor typeMetal chain
Conveyor speed0.5-20M/min or Specify
Power Supply110V-220V 50/60HZ
FOB portShenzhen
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-12-14
Detail Information

PCB Solder Outfeed Conveyor after wave soldering machine

Features

This conveyor is used to unload PCB’s or pallets from a wave soldering machine at 6-7° angle. Decline section presents PCB/pallet at standard height to downstream machine.

1.Conveyor width adjustment using hand crank.

2.Free running concept, no flow control.

3.Flux protected by using 3mm pin chain.

4.Sliding resistors on decline section.

Details of PCB Inspection Conveyor
Technical  parameter

DescriptionUsed to connect wave machines outlet to conveyor
Conveyor TypeMetal chain
Conveyor Speed0.5-20m/min or specify
Power Source230VAC 1ph 100VA max (option 100VAC)
Specification

ModelSizeDimension(L*W*H)(mm)PVC Belt Size(mm)Approximate Weight(kg)
SML-1A120MM1200*485*1200300  85
SML-1A120LL1200*585*120040095
SML-1A120LLLL1200*685*1200500105
SML-1A120XLXL1200*785*1200600120
