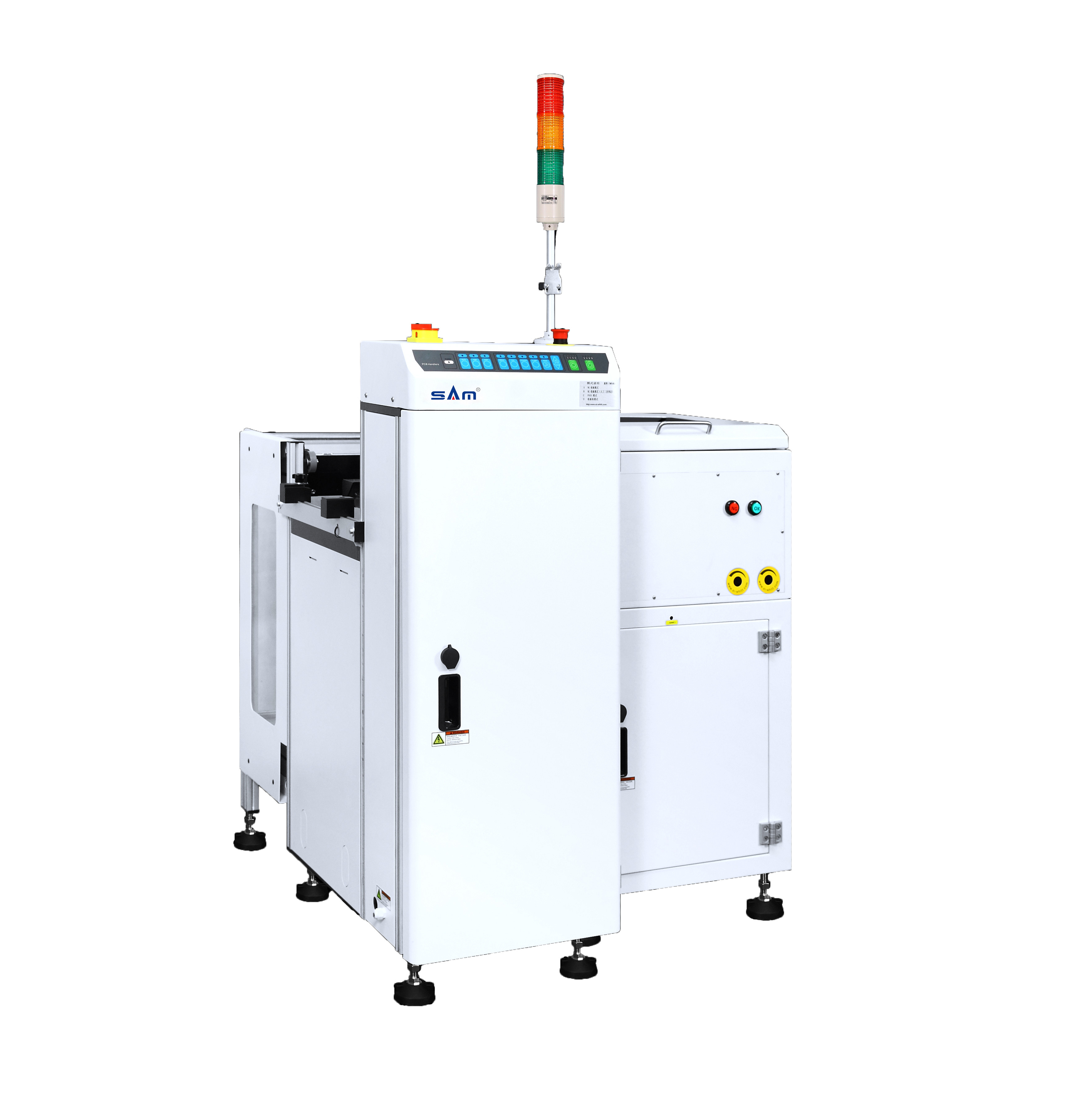

Multi Function Magazine buffer stocker

Multi Function Magazine buffer stocker

Multi Function Magazine buffer stocker
CategoriesBuffer
AlbumView larger image
BrandSamtronik
BrandSAM
Products NameNG Magazine buffer
No.of magazine2 pcs magazine
Cycle timeApp 20 second
Power supply110V-220V 50/60HZ
PCB Thickness0.6mm Min
FOB portShenzhen
Terms of PaymentL/C, T/T
Update Time2018-12-14
Detail Information
Multi Function Magazine buffer stocker
Features

1.Apply for collection NG boards after reflow and AOI.


2.Six operation mode: FIFO,LIFO,Loading,Unloading ,collect NG board and OK board pass-through .


3.PLC programming control system .


4.Simple operation Soft touch LED control panel .


5.Special pressure circuit design to prevent PCB board damage .


6.Three point pneumatic clamping to align for secure magazine position.


7.Push height can adjust according to PCB thickness .


8.If buffer capacity required ,can add magazine.


9.SMEMA Compatible .


Application example





Multi operation mode Magazine buffer :

First in first out

Late in first out

Loading

Unloading

NG Board collect

Pass-through

Technical  parameter

Description

Used as a buffer between SMT Machine

No.of Magazine

upper conveyor :1 pcs ,

Lower conveyor 1 pcs

Max PCBs Load

2kg/PCB

Cycle time

Approx. 15 seconds

Indexing Pitch

10 20 30 40mm or specify

Power Source

220VAC 50/60HZ

Air Pressure &

Consume

4-6 bar, 15ltr/min max.

PCB Thickness

0.6mm min.

Specification

Model

Size

Dimension

(L * W* H) (mm)

EffectivePCB Size( LxW) (mm)

Approximate

Weight (Kg)

Rack size

(L*M*H)mm

SMC-1D100M

M

1245*1175*1600mm

50*50-330*250

140

355*320*560

SMC-1D100L

L

1460*1258*1600mm

50*50-445*330

200

460*400*560

SMC-1D100LL

LL

1635*1450*1600mm

50*50-530*390

240

535*460*560

SMC-1D100XL

XL

1635*1530*1600mm

50*50-530*460

280

535*530*460
