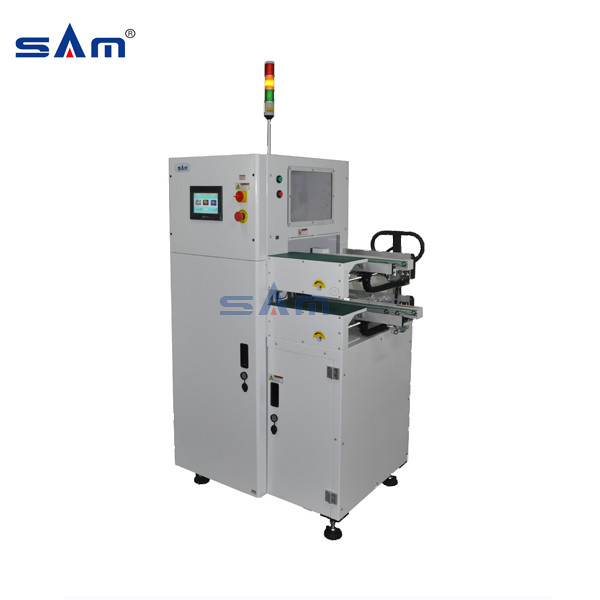

SPI/AOI Vertical PCB buffer

SPI/AOI Vertical PCB buffer

SPI/AOI Vertical PCB buffer
CategoriesBuffer
AlbumView larger image
BrandSamtronik
BrandSAM
Products NameVertical pcb buffer
Conveyor typeFlat belt
Conveyor speed0.5-20M/min or Specify
Power Supply110V-220V 50/60HZ
Max PCB Capacity15pcs or specify
FOB portShenzhen
Terms of PaymentL/C, T/T
Update Time2018-12-17
Detail Information
 SPI/AOI Vertical PCB buffer
Features

1. User friendly ‘soft touch’ LED membrane control panel.


2. Operating mode:OK pass through or Stock,

NG reject,Awaiting definite.


3. Durable rollers as conveying medium. ( no replacement of belts needed)


4.Fast,Smooth and Accurate indexing position. (Servo motor Drive)


5. ‘Threshold” system provided.


6. Smooth and parallel width adjustment.( Lead screw driven)


7. Small machine footprint.


8.SMEMA compatible .


Application example





SPI AOI Vertical PCB Buffer with three operation mode:


OK pass through or Stock


NG reject

Awaiting definite
Technical  parameter

Description

Used as a buffer between SMT Machine

Max PCBs Capacity

15 pcs or specify

Max PCBs Load

2kg/PCB

Cycle time

Approx. 15 seconds

Indexing Pitch

20mm or specify

Power Source

220VAC 50/60HZ

Air Pressure &

Consume

4-6 bar, 15ltr/min max.

PCB Thickness

0.6mm min.

Specification

Model

Size

Dimension

(L * W* H) (mm)

EffectivePCB Size

( LxW) (mm)

Approximate

Weight (Kg)

SMC-1T100M

   M

1000*950*1560mm

50*50-330*250

    180

SMC-1T100L

   L

1100*1075*1560mm

50*50-445*330

    220

SMC-1T100LL

   LL

1200*1280*1560mm

50*50-530*390

    280
