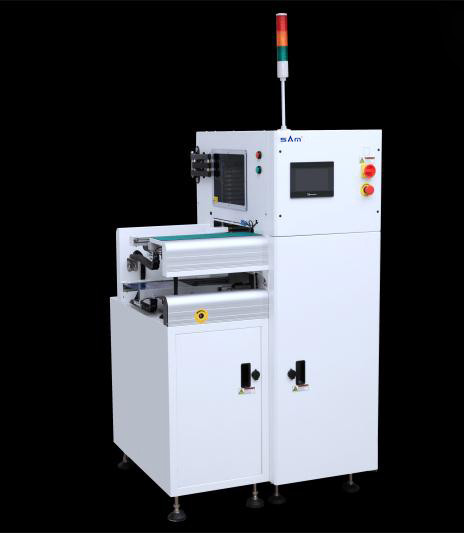

Multi Function Vertical PCB buffer

Multi Function Vertical PCB buffer

Multi Function Vertical PCB buffer
CategoriesBuffer
BrandSamtronik PCB Handling Equipment
BrandSAM
Products NameVertical pcb buffer
Cycle timeApprox 15 second
Max load pcb weight2 KG
Max PCB Capacity25 pcs or Specify
FOB portShenzhen
Terms of PaymentL/C, T/T
Update TimeDec 7,2024
Detail Information
Multi Function Vertical Buffer
Features

1. User friendly ‘soft touch’ LED membrane control panel.


2. Operating mode: FIFO ,LIFO ,Pass-through


3. Durable rollers as conveying medium. ( no replacement of belts needed)


4.Fast,Smooth and Accurate indexing position. (Servo motor Drive)


5. ‘Threshold” system provided.


6. Smooth and parallel width adjustment.( Lead screw driven)


7. Small machine footprint.


8.SMEMA compatible .





Multi operation mode vertical buffer :

First in first out

Late in first out

Pass-through

Technical  parameter

Description

Used as a buffer between SMT Machine

Max PCBs Capacity

15 pcs or specify

Max PCBs Load

2kg/PCB

Cycle time

Approx. 15 seconds

Indexing Pitch

20mm or specify

Power Source

220VAC 50/60HZ

Air Pressure &

Consume

4-6 bar, 15ltr/min max.

PCB Thickness

0.6mm min.

Specification

Model

Size

Dimension

(L * W* H) (mm)

EffectivePCB Size

( LxW) (mm)

Approximate

Weight (Kg)

SMC-1T100M

   M

1000*950*1560mm

50*50-330*250

    180

SMC-1T100L

   L

1100*1075*1560mm

50*50-445*330

    220

SMC-1T100LL

   LL

1200*1280*1560mm

50*50-530*390

    280
