SAM Best selling 0.6Mt PCB Inspection Conveyors
| Categories | Conveyors |
|---|---|
| Trademark/Brand | Samtronik PCB Handling Equipment |
| Brand | SAM |
| Products Name | PCB Inspection Conveyor |
| Conveyor type | Flat belt |
| Conveyor speed | 0.5-20M/min or Specify |
| Power Supply | 110V-220V 50/60HZ |
| FOB port | Shenzhen |
| Terms of Payment | L/C, T/T |
| Download |  |
| Update Time | Nov 4,2025 |
Detail Information

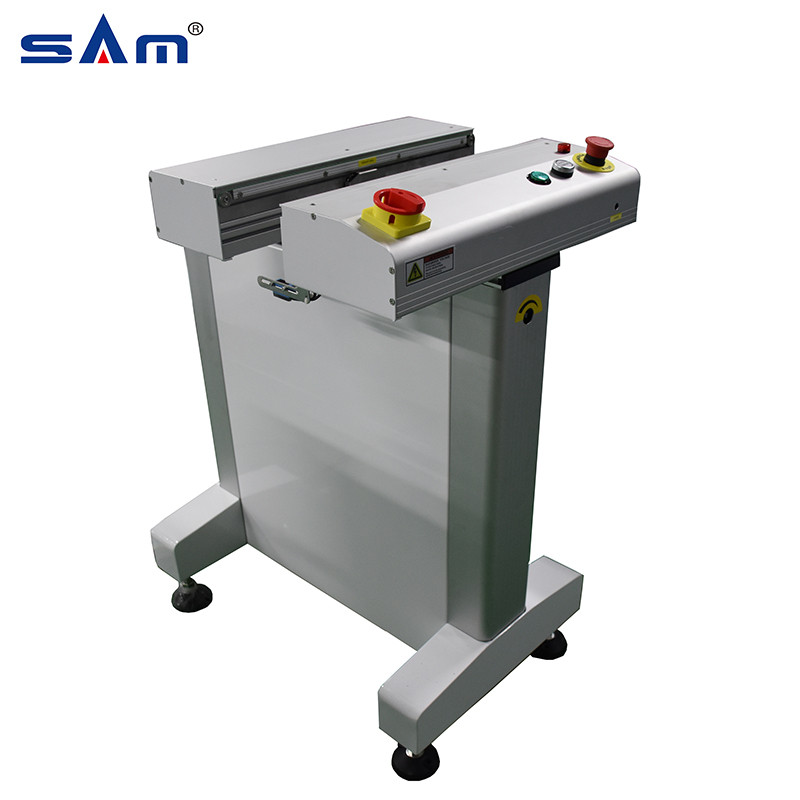

0.6 Mt PCB Inspection conveyors smt conveyors for SMD Line
Features
1. Anti stuck track design .
2.PLC Program control .
3. Easy replacement belts .
4. Aluminium material , heavy bottom design to prevent shifting .
5.PCB Precise stopping in position .
6.With Inspection and Auto mode.
7.Smooth and parallel width adjustment .
8.SMEMA compatible
Option: conveyor can be customize according to requirement ,such as length ,no of PCB stoppage ,add ESD dust cover etc ....
Details of PCB Inspection Conveyor
Technical parameter
| Description | Usedfor visual inspection station |
| Conveyor Type | Flat Belt |
| Conveyor Speed | 0.5-20m/min or specify |
| Power Source | 110V-220VAC 50/60HZ |
Specification
Model | Size | Dimension (L x W x H) (mm) | Effective PCB Size (L x W) (mm) | Approximate Weight (Kg) |
SMA-2A100L | L | 1000 x 742 x 930 | 50x50-445x330 | 95 |
SMA-2A100XL | XL | 1000x 840 x 930 | 50x50-530x460 | 110 |
SMA-2B050L | L | 500 x 700 x 915 | 50x50-445x330 | 85 |
SMA-2B050XL | XL | 500 x 840 x 915 | 50x50-445x460 | 90 |
SMA-2B060L | L | 600 x 742 x 915 | 50x50-445x330 | 90 |
SMA-2B060XL | XL | 600 x 840 x 915 | 50x50-445x460 | 95 |
SMA-2B070L | L | 700 x 707 x 915 | 50x50-445x330 | 90 |
